Location：Home > Products > SC / PC-SC / APC singlemode single core Patch Cord

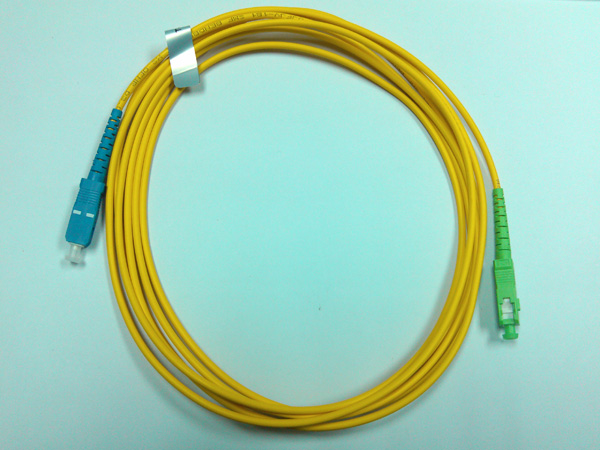

SC / PC-SC / APC singlemode single core Patch Cord
| Items | LED Source | Test Result | |||
| Optical Performance | Insertion Loss | 1310mm | ≤0.3dB | NA | |
| Return Loss | 1310mm | NA | ≥50dB(PC) ≥60dB(APC) | ||
| Mechanical Performance | Interchangeability | Random connection | △＜0.2dB | △＜0.5dB | |
| Vibration |
5-50Hz, 1.5mm Vibration Amplitude |
△＜0.2dB | △＜0.5dB | ||
| Tensile Strength | 6kg | △＜0.2dB | △＜0.5dB | ||
| Environmental Performance | High temperature | +85℃, 96H | △＜0.2dB | △＜0.5dB | |
| Low temperature | -40℃, 96H | △＜0.2dB | △＜0.5dB | ||
| Temperature Cycling | -40℃~+85℃ 5Cysles | △＜0.2dB | △＜0.5dB | ||
| Humidity | +40℃, 90%~95%, 96H | △＜0.2dB | △＜0.5dB | ||
