Location：Home > Products > Air blown optical fiber cable

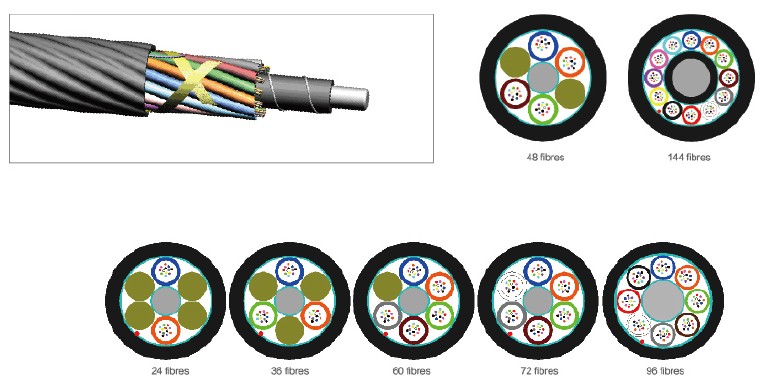

Air blown optical fiber cable
Air blown optical fiber cable
| Items | Description | |||||||
| Fiber Count | 24 | 36 | 48 | 60 | 72 | 96 | 144 | |
| Loose Tube | 2 | 3 | 4 | 5 | 6 | 8 | 12 | |
| Filler | 4 | 3 | 2 | 1 | 0 | 0 | 0 | |
| Fibers per Tube | 12 | |||||||
| Water Blocking | Water Blocking Yarns | |||||||
| Water Blocking Tape | ||||||||
| Sheath Thickness | Average: 0.45; Minimum: 0.40mm | |||||||
| Cable Diameter | 5.6±0.1mm | 6.4±0.1mm | 8.2±0.1mm | |||||
| Cable Weight | 27 kg / km | 40 kg / km | 65 kg / km | |||||
| Tensile Strength | 500N | 1200N | 1500N | |||||
| Crush Risistance | 800N / 100mm | |||||||
| Bend Radius (Operation) | 10 | |||||||
| Bend Radius (Installation) | 20 | |||||||
| Temperature | Storage | -40~ +70℃ | ||||||
| Installation | -30~ +50℃ | |||||||
| Operation | -40~ +70℃ | |||||||
